Flanges

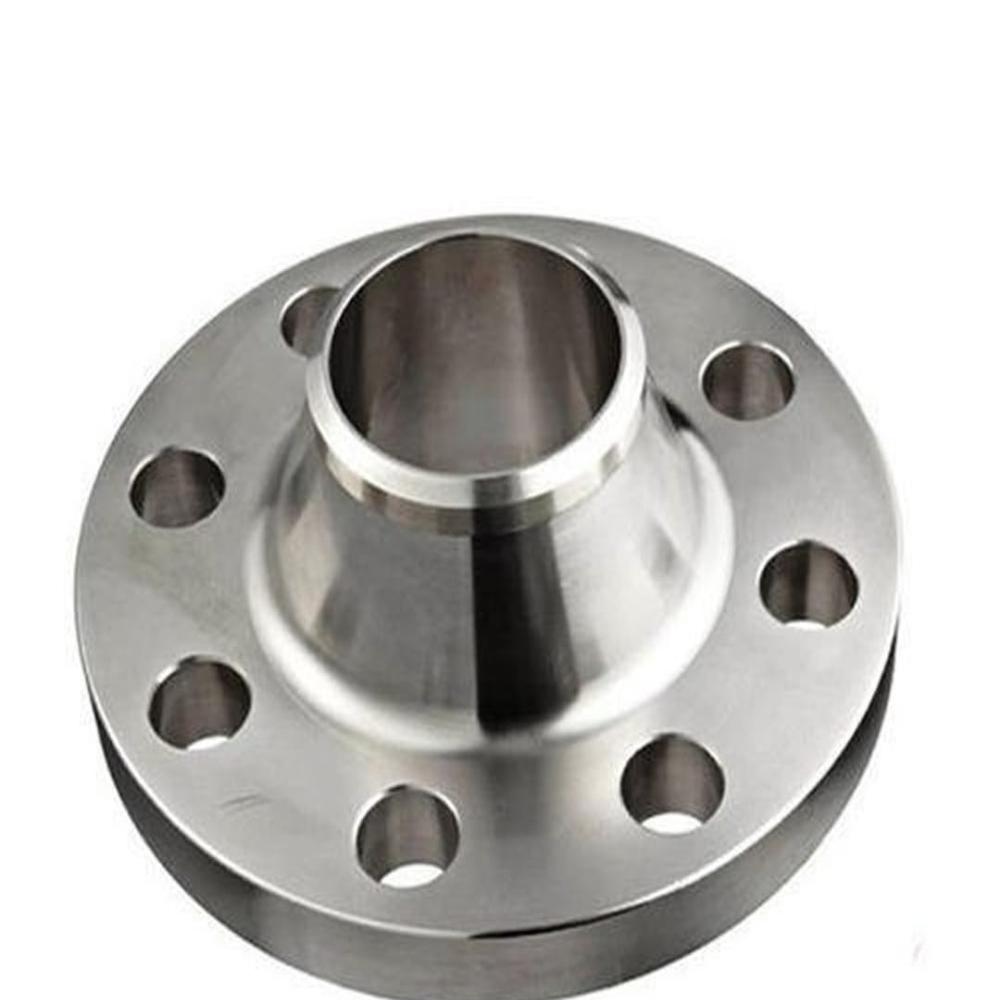

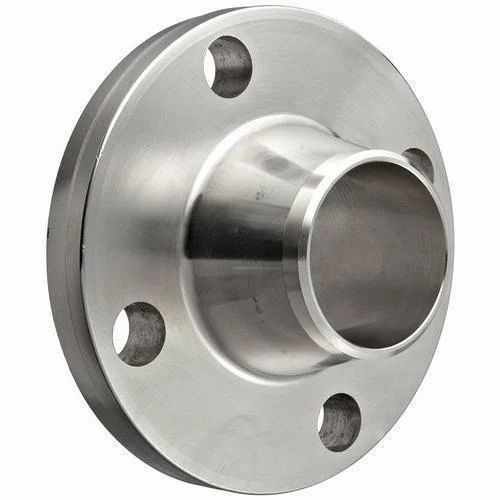

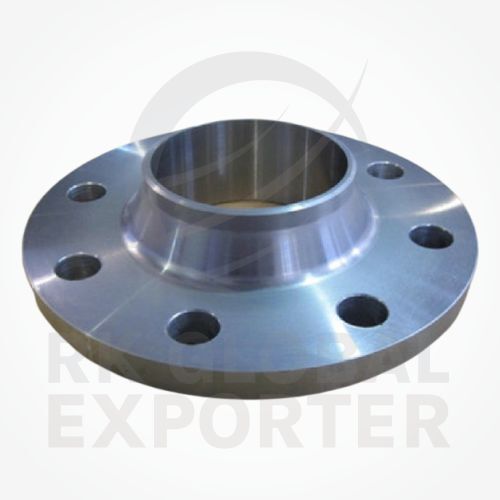

Weld Neck Flanges

  • Designed as per ASME standards.
  • CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
  • High quality antirust coating is provided.
  • Crack free installation.
  • Customized material and size will be provided upon request
  • IBR Certified will also be provided upon request.
Application

WATER | AIR | STEAM | GAS | OIL

Specifications :

  • N.Bore:A:B:C:D:F:J:L:P:T:Holes
  • 15:89:11.1:1.6:35:30:21.3:48:60.3:15.9:4
  • 20:98:12.7:1.6:43:38:26.7:52:69.8:15.9:4
  • 25:108:14.3:1.6:51:49:33.4:56:79.4:15.9:4
  • 32:117:15.9:1.6:64:59:42.2:57:88.9:15.9:4
  • 40:127:17.5:1.6:73:65:48.3:62:98.4:15.9:4
  • 50:152:19:1.6:92:78:60.3:64:120.6:19:4
  • 65:178:22.2:1.6:105:90:73:70:139.7:19:4
  • 80:190:23.8:1.6:127:108:88.9:70:152.4:19:4
  • 90:216:23.8:1.6:140:122:101.6:71:177.8:19:8
  • 100:229:23.8:1.6:157:135:114.3:76:190.5:19:8
  • 125:254:23.8:1.6:186:164:141.3:89:215.9:22.2:8
  • 150:279:25.4:1.6:216:192:168.3:89:241.3:22.2:8
  • 200:343:28:1.6:270:246:219.1:102:288.4:22.2:8
  • 250:406:30.2:1.6:324:305:273:102:362:25.4:12
  • 300:483:34.8:1.6:381:365:323.9:114:431.8:25.4:12
  • N.Bore:A:B:C:D:F:J:L:P:T:Holes
  • 15:95:14.3:1.6:35:38:21.3:52:66.7:15.9:4
  • 20:117:15.9:1.6:43:48:26.7:57:82.6:19:4
  • 25:124:17.5:1.6:51:54:33.4:62:88.9:19:4
  • 32:133:19:1.6:64:64:42.2:65:98.4:19:4
  • 40:156:20.6:1.6:73:70:48.3:68:114.3:22.2:4
  • 50:165:22.2:1.6:92:84:60.3:70:127:19:8
  • 65:190:25.4:1.6:105:100:73:76:149.2:22.2:8
  • 80:210:28.6:1.6:127:117:88.9:79:168.3:22.2:8
  • 90:229:30.2:1.6:140:133:101.6:81:184.2:22.2:8
  • 100:254:31.8:1.6:157:146:114.3:86:200.2:22.2:8
  • 125:279:34.9:1.6:186:178:141.3:98:235:22.2:8
  • 150:318:36.8:1.6:216:206:168.3:98:269.9:22.2:12
  • 200:381:41.3:1.6:270:260:219.1:111:330.2:25.4:12
  • 250:444:47.6:1.6:324:321:273:117:387.4:28.6:16
  • 300:521:50.8:1.6:381:375:323.9:130:450.8:31.8:16

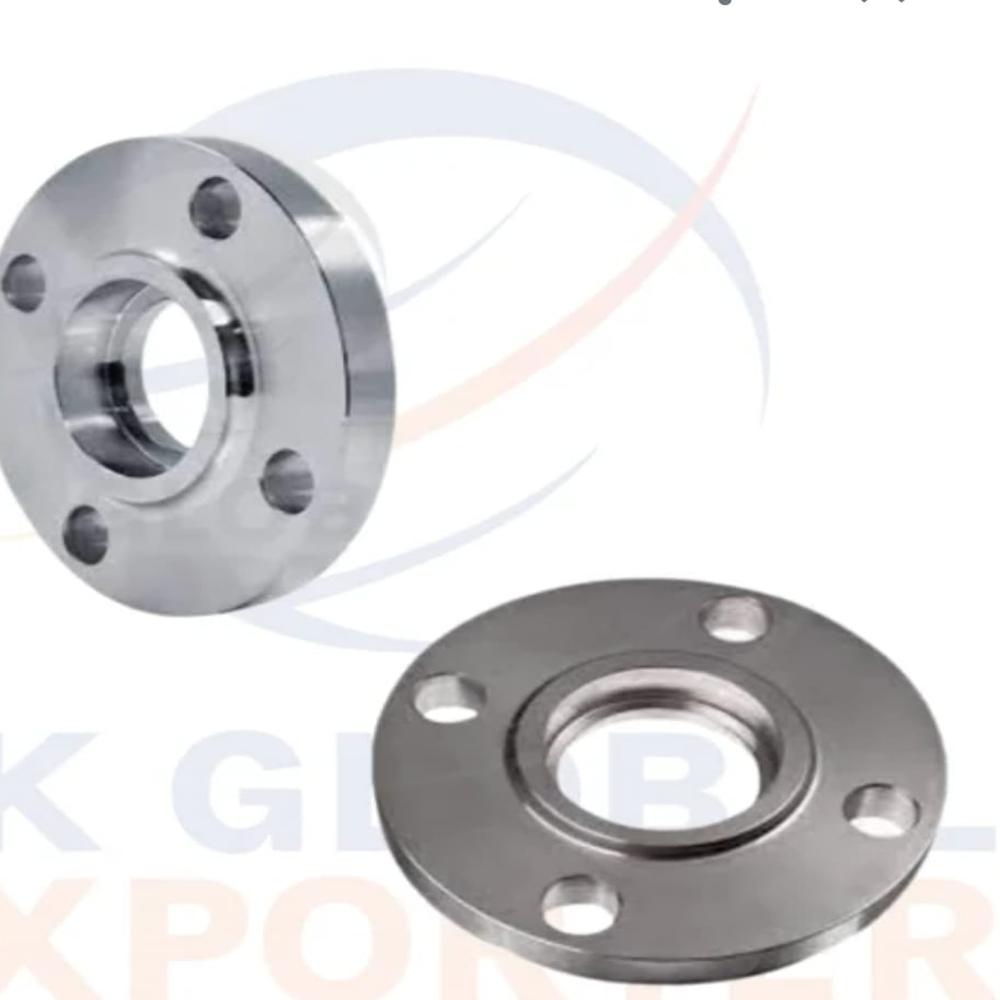

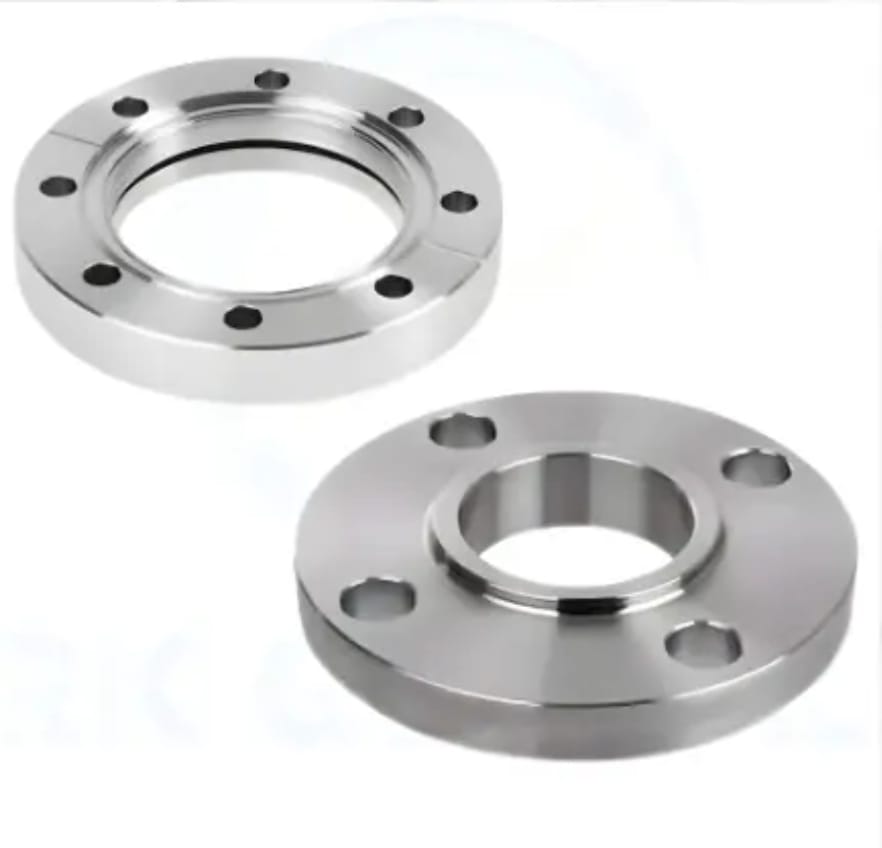

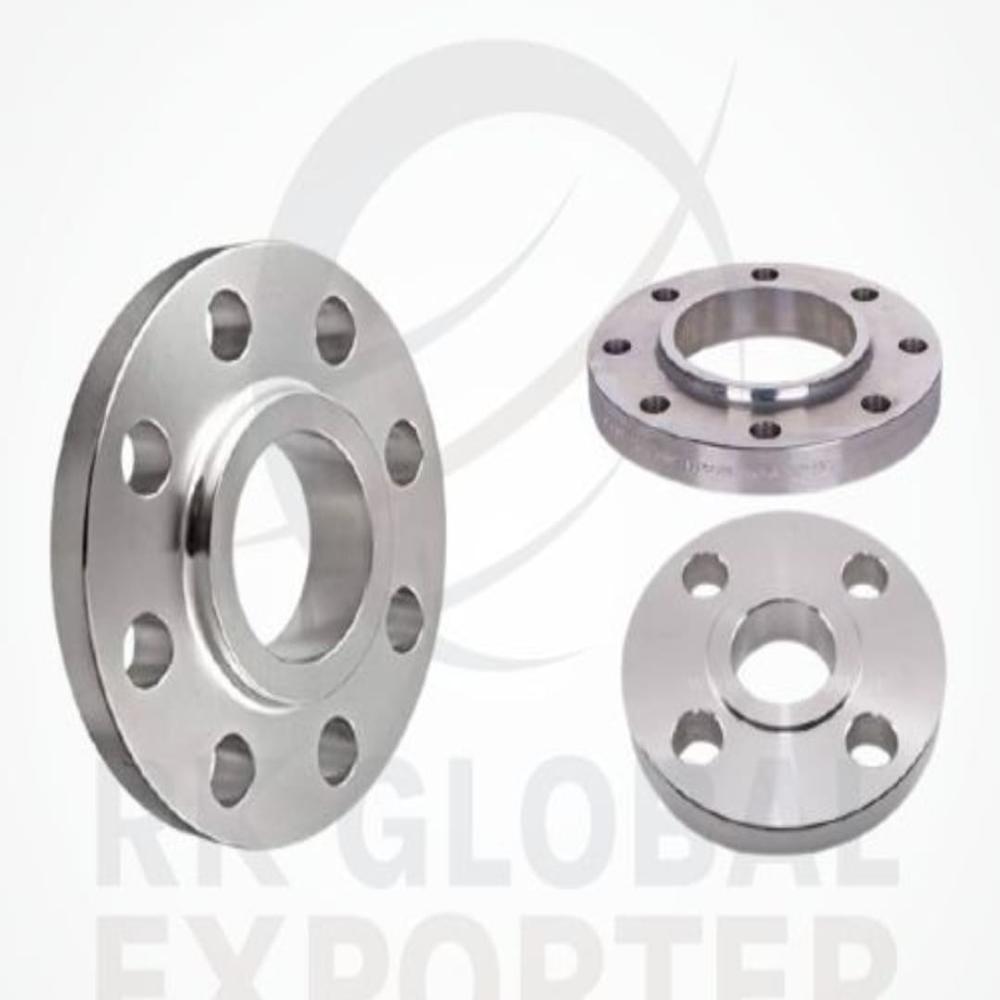

Slip On Flanges

  • Designed as per ASME standards.
  • CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
  • High quality antirust coating is provided.
  • Crack free installation.
  • Customized material and size will be provided upon request
  • IBR Certified will also be provided upon request.
Application:

WATER | AIR | STEAM | GAS | OIL

Specifications :

  • N.Bore:A:B:C:D:E:F:G:P:T:Holes
  • 15:89:11.1:1.6:35:16:30:22.4:60.3:15.9:4
  • 20:98:12.7:1.6:43:16:38:27.7:69.8:15.9:4
  • 25:108:14.3:1.6:51:17:49:34.5:79.4:15.9:4
  • 32:117:15.9:1.6:64:21:59:43.2:88.9:15.9:4
  • 40:127:17.5:1.6:73:22:65:49.5:98.4:15.9:4
  • 50:152:19:1.6:92:25:78:62:120.6:19:4
  • 65:178:22.2:1.6:105:29:90:74.7:139.7:19:4
  • 80:190:23.8:1.6:127:30:108:90.7:152.4:19:4
  • 90:216:23.8:1.6:140:32:122:103.4:177.8:19:8
  • 100:229:23.8:1.6:157:33:135:116.1:190.5:19:8
  • 125:254:23.8:1.6:186:37:164:143.8:215.9:22.2:8
  • 150:279:25.4:1.6:216:40:192:170.7:241.3:22.2:8
  • 200:343:28:1.6:270:44:246:221.5:288.4:22.2:8
  • 250:406:30.2:1.6:324:49:305:276.4:362:25.4:12
  • 300:483:34.8:1.6:381:56:365:327.2:431.8:25.4:12
  • N.Bore:A:B:C:D:E:F:G:P:T:Holes
  • 15:95:14.3:1.6:35:22:38:22.4:66.7:15.9:4
  • 20:117:15.9:1.6:43:25:48:27.7:82.6:19:4
  • 25:124:17.5:1.6:51:27:54:34.5:88.9:19:4
  • 32:133:19:1.6:64:27:64:43.2:98.4:19:4
  • 40:156:20.6:1.6:73:30:70:49.5:114.3:22.2:4
  • 50:165:22.2:1.6:92:33:84:62:127:19:8
  • 65:190:25.4:1.6:105:38:100:74.4:149.2:22.2:8
  • 80:210:28.6:1.6:127:43:117:90.7:168.3:22.2:8
  • 90:229:30.2:1.6:140:44:133:103.4:184.2:22.2:8
  • 100:254:31.8:1.6:157:48:146:116.1:200.2:22.2:8
  • 125:279:34.9:1.6:186:51:178:143.8:235:22.2:8
  • 150:318:36.8:1.6:216:52:206:170.7:269.9:22.2:12
  • 200:381:41.3:1.6:270:62:260:221.5:330.2:25.4:12
  • 250:444:47.6:1.6:324:67:321:276.4:387.4:28.6:16
  • 300:521:50.8:1.6:381:73:375:327.2:450.8:31.8:16

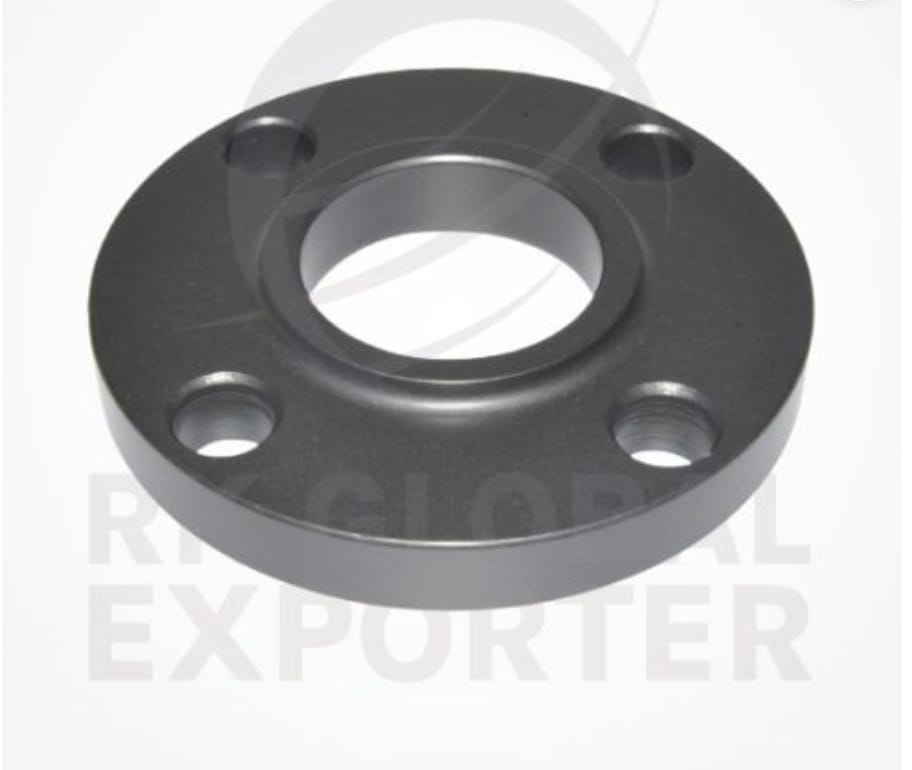

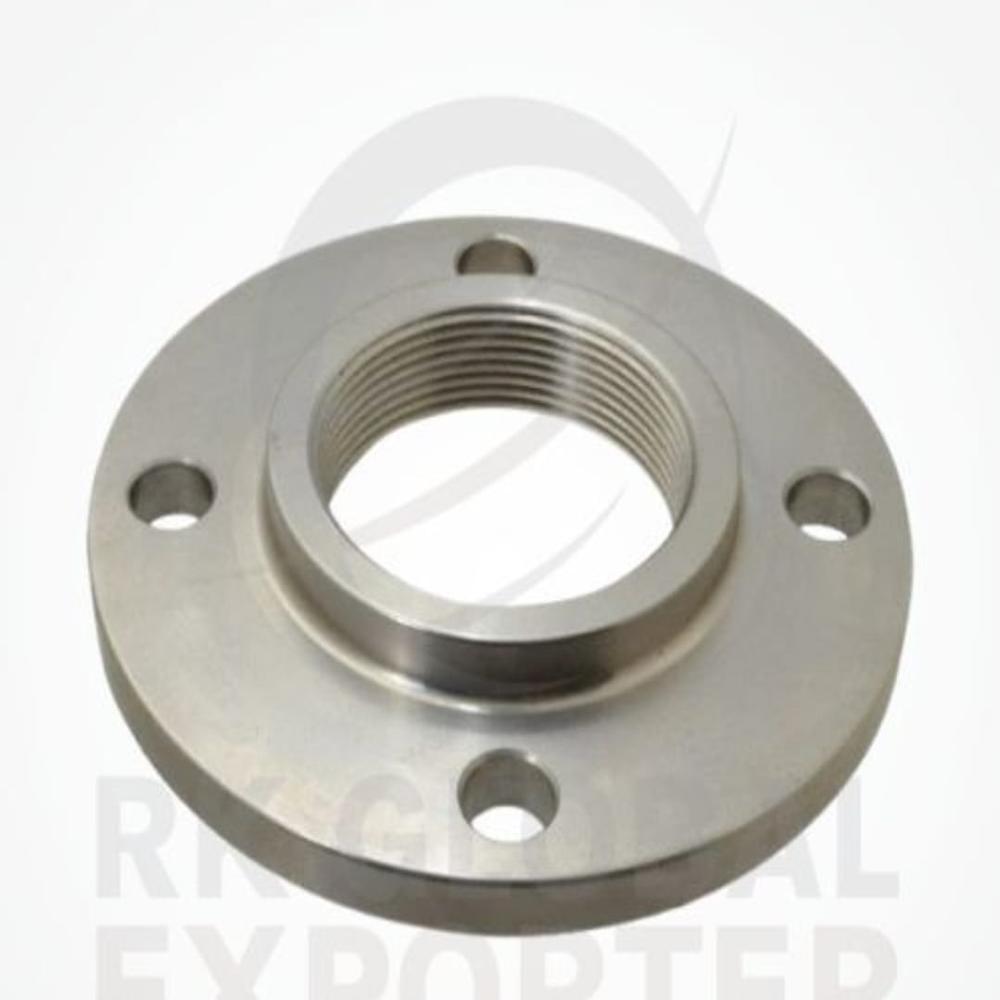

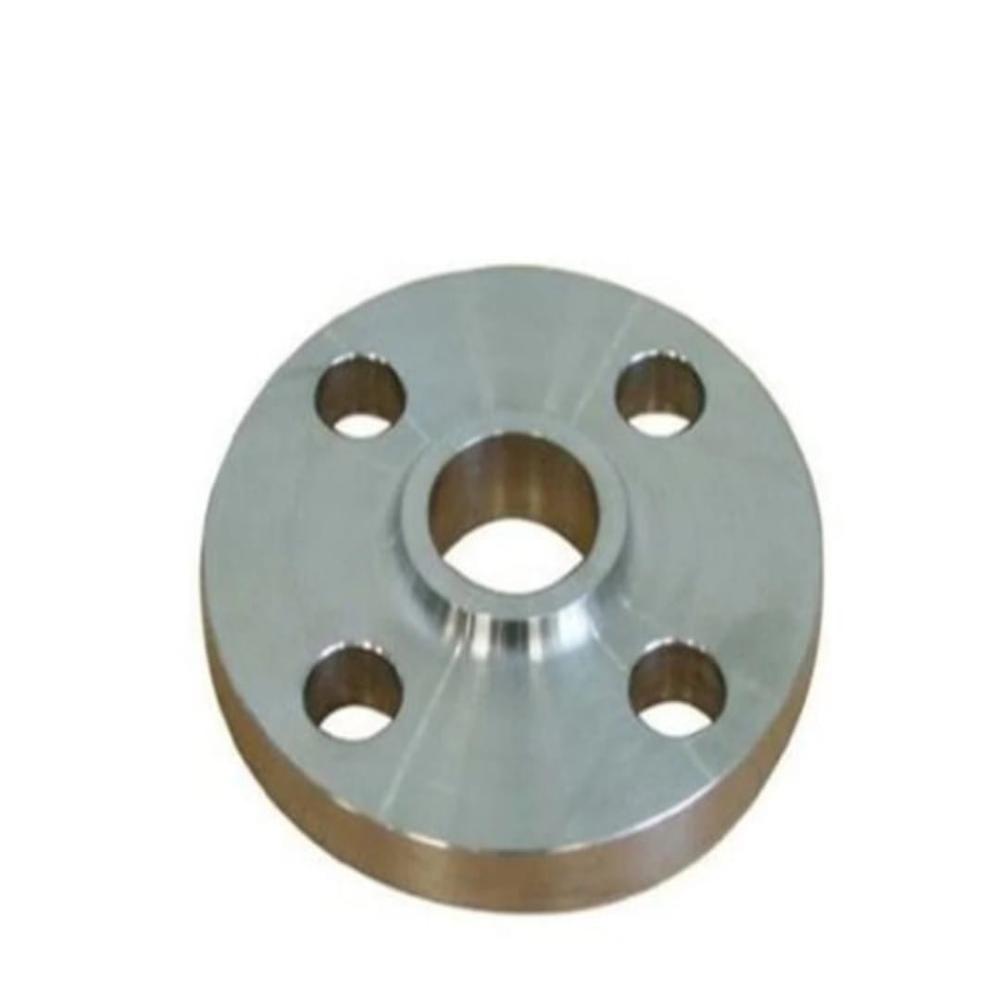

Screwed Flanges

  • Designed as per ASME standards.
  • CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
  • High quality antirust coating is provided.
  • Crack free installation.
  • Customized material and size will be provided upon request
  • IBR Certified will also be provided upon request.
Application:

WATER | AIR | STEAM | GAS | OIL

Specifications :

  • N.Bore:A:B:C:D:E:F:K:M:P:T:Holes
  • 15:89:11.1:1.6:35:16:30:-:16:60.3:15.9:4
  • 20:98:12.7:1.6:43:16:38:-:16:69.8:15.9:4
  • 25:108:14.3:1.6:51:17:49:-:17:79.4:15.9:4
  • 32:117:15.9:1.6:64:21:59:-:21:88.9:15.9:4
  • 40:127:17.5:1.6:73:22:65:-:22:98.4:15.9:4
  • 50:152:19:1.6:92:25:78:-:25:120.6:19:4
  • 65:178:22.2:1.6:105:29:90:-:29:139.7:19:4
  • 80:190:23.8:1.6:127:30:108:-:30:152.4:19:4
  • 90:216:23.8:1.6:140:32:122:-:32:177.8:19:8
  • 100:229:23.8:1.6:157:33:135:-:33:190.5:19:8
  • 125:254:23.8:1.6:186:37:164:-:37:215.9:22.2:8
  • 150:279:25.4:1.6:216:40:192:-:40:241.3:22.2:8
  • 200:343:28:1.6:270:44:246:-:44:288.4:22.2:8
  • 250:406:30.2:1.6:324:49:305:-:49:362:25.4:12
  • 300:483:34.8:1.6:381:56:365:-:56:431.8:25.4:12
  • N. Bore:A:B:C:D:E:F:K:M:P:T:Holes
  • 15:95:14.3:1.6:35:22:38:23.5:16:66.7:15.9:4
  • 20:117:15.9:1.6:43:25:48:29:16:82.6:19:4
  • 25:124:17.5:1.6:51:27:54:36:17:88.9:19:4
  • 32:133:19:1.6:64:27:64:44.5:21:98.4:19:4
  • 40:156:20.6:1.6:73:30:70:50.5:22:114.3:22.2:4
  • 50:165:22.2:1.6:92:33:84:63.5:29:127:19:8
  • 65:190:25.4:1.6:105:38:100:76:32:149.2:22.2:8
  • 80:210:28.6:1.6:127:43:117:92:32:168.3:22.2:8
  • 90:229:30.2:1.6:140:44:133:105:37:184.2:22.2:8
  • 100:254:31.8:1.6:157:48:146:118:37:200.2:22.2:8
  • 125:279:34.9:1.6:186:51:178:145:43:235:22.2:8
  • 150:318:36.8:1.6:216:52:206:171:46:269.9:22.2:12
  • 200:381:41.3:1.6:270:62:260:222:51:330.2:25.4:12
  • 250:444:47.6:1.6:324:67:321:276:56:387.4:28.6:16
  • 300:521:50.8:1.6:381:73:375:329:60:450.8:31.8:16

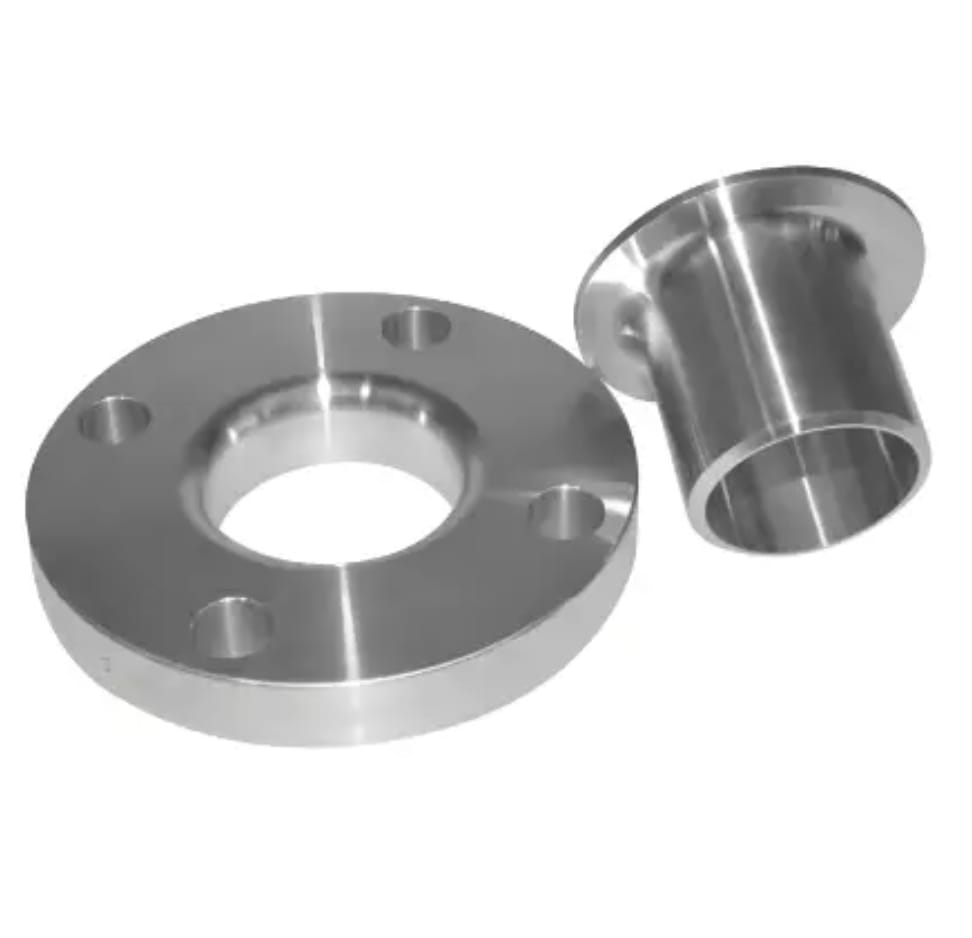

Lap Joint Flanges

  • Designed as per ASME standards.
  • CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
  • High quality antirust coating is provided.
  • Crack free installation.
  • Customized material and size will be provided upon request
  • IBR Certified will also be provided upon request.
Application

WATER | AIR | STEAM | GAS | OIL

 Specifications :

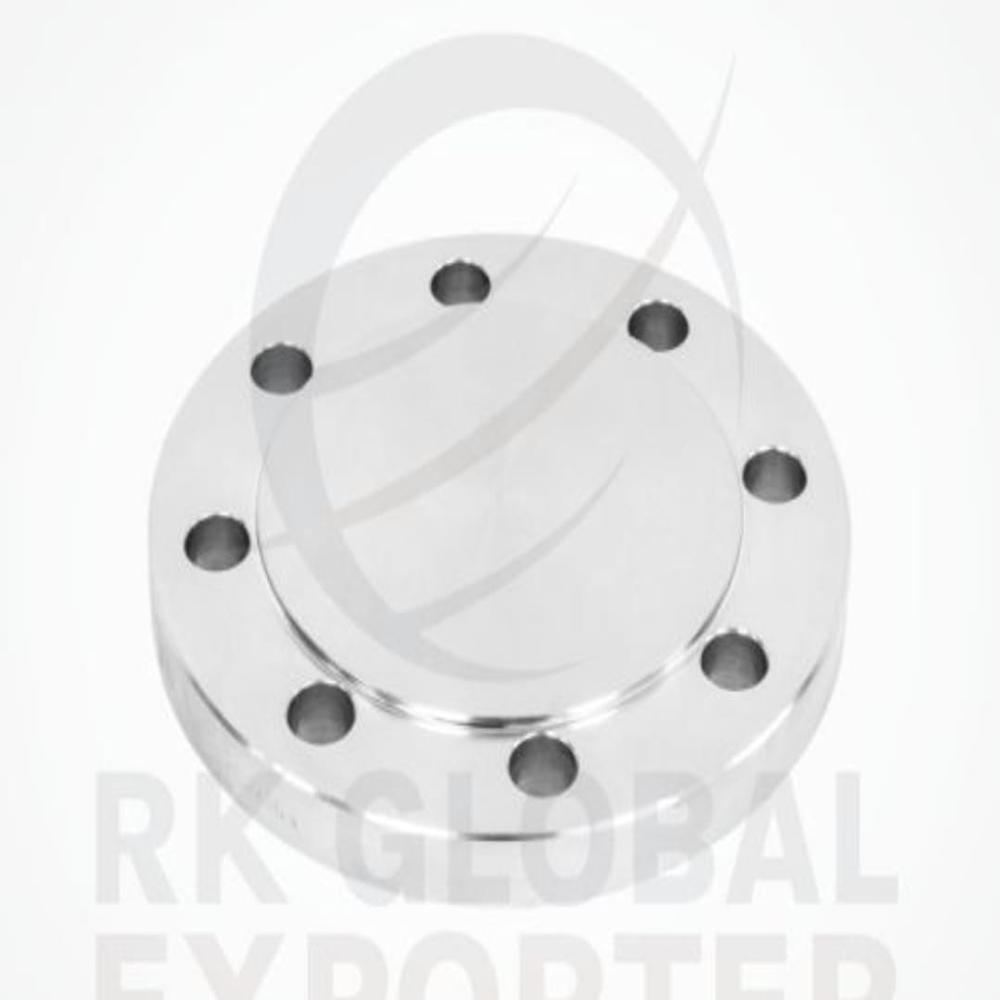

Blind Flanges

  • Designed as per ASME standards.
  • CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
  • High quality antirust coating is provided.
  • Crack free installation.
  • Customized material and size will be provided upon request
  • IBR Certified will also be provided upon request.
Application

WATER | AIR | STEAM | GAS | OIL

Specifications :

  •  N.Bore:A:B:C:D:E:F:K:M:P:T:Holes
  • 15:89:11.1:1.6:35:16:30:-:16:60.3:15.9:4
  • 20:98:12.7:1.6:43:16:38:-:16:69.8:15.9:4
  • 25:108:14.3:1.6:51:17:49:-:17:79.4:15.9:4
  • 32:117:15.9:1.6:64:21:59:-:21:88.9:15.9:4
  • 40:127:17.5:1.6:73:22:65:-:22:98.4:15.9:4
  • 50:152:19:1.6:92:25:78:-:25:120.6:19:4
  • 65:178:22.2:1.6:105:29:90:-:29:139.7:19:4
  • 80:190:23.8:1.6:127:30:108:-:30:152.4:19:4
  • 90:216:23.8:1.6:140:32:122:-:32:177.8:19:8
  • 100:229:23.8:1.6:157:33:135:-:33:190.5:19:8
  • 125:254:23.8:1.6:186:37:164:-:37:215.9:22.2:8
  • 150:279:25.4:1.6:216:40:192:-:40:241.3:22.2:8
  • 200:343:28:1.6:270:44:246:-:44:288.4:22.2:8
  • 250:406:30.2:1.6:324:49:305:-:49:362:25.4:12
  • 300:483:34.8:1.6:381:56:365:-:56:431.8:25.4:12
  • N. Bore:A:B:C:D:E:F:K:M:P:T:Holes
  • 15:95:14.3:1.6:35:22:38:23.5:16:66.7:15.9:4
  • 20:117:15.9:1.6:43:25:48:29:16:82.6:19:4
  • 25:124:17.5:1.6:51:27:54:36:17:88.9:19:4
  • 32:133:19:1.6:64:27:64:44.5:21:98.4:19:4
  • 40:156:20.6:1.6:73:30:70:50.5:22:114.3:22.2:4
  • 50:165:22.2:1.6:92:33:84:63.5:29:127:19:8
  • 65:190:25.4:1.6:105:38:100:76:32:149.2:22.2:8
  • 80:210:28.6:1.6:127:43:117:92:32:168.3:22.2:8
  • 90:229:30.2:1.6:140:44:133:105:37:184.2:22.2:8
  • 100:254:31.8:1.6:157:48:146:118:37:200.2:22.2:8
  • 125:279:34.9:1.6:186:51:178:145:43:235:22.2:8
  • 150:318:36.8:1.6:216:52:206:171:46:269.9:22.2:12
  • 200:381:41.3:1.6:270:62:260:222:51:330.2:25.4:12
  • 250:444:47.6:1.6:324:67:321:276:56:387.4:28.6:16
  • 300:521:50.8:1.6:381:73:375:329:60:450.8:31.8:16
