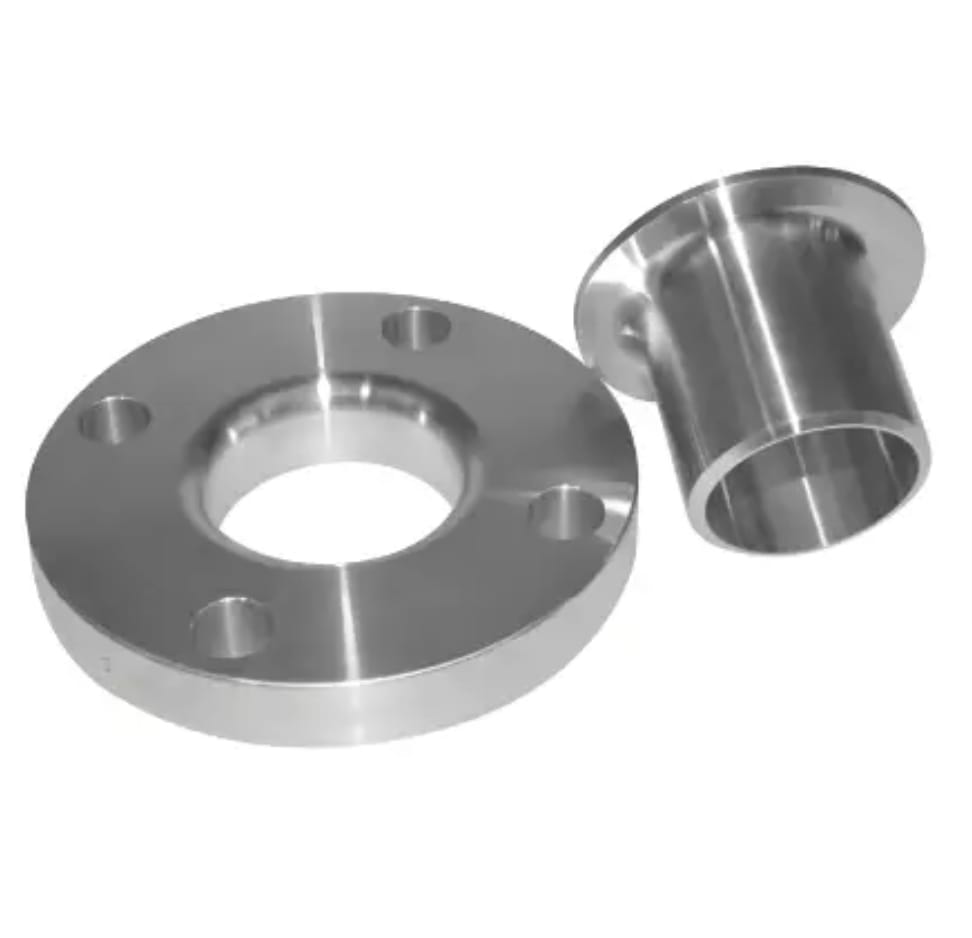

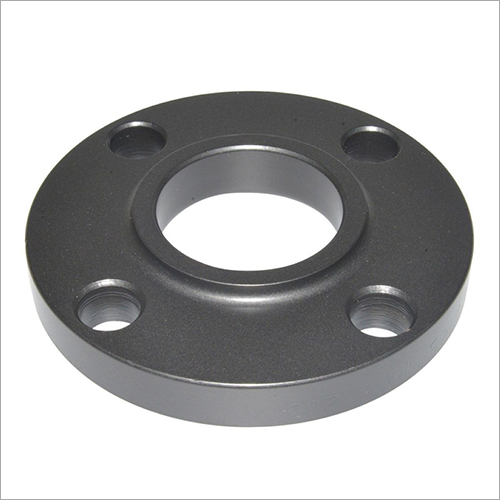

Lap Joint Flanges

Lap Joint Flanges

Send Inquiry

Request To Call Back

Lap Joint Flanges

Price 100 INR/ Number

Get a Price/Quote

Lap Joint Flanges Specification

Application
Water, Air, Gas, Steam, Oil

Feature
CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO. Crack free installation.

Product Type
Other

Material
Steel

Standard
ASME

Shape
Round

Size
Customized

Color
Silver

Lap Joint Flanges Trade Information

Minimum Order Quantity
50 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1000 Per Month

Delivery Time
1-2 Week

Sample Available
Yes

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Lap Joint Flanges

Lap Joint Flanges that we offer are designed for ensuring leakage-proof fitting of the pipeline. These flanges are connected with the use of reinforced nuts & bolts in order to guarantee hassle-free longer performance and low maintenance cost. They are precisely outlined and fabricated as per ASME standards. CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO. These Lap Joint Flanges comes in several diameter and thickness to opt from. Further, they are known for their features such as anti-rust coating, crack-free installation, IBR certification, etc.

Features:

Customized material and size will be provided upon request.
IBR Certified will also be provided upon request.

Application:

WATER | AIR | STEAM | GAS | OIL

Specifications :

N.Bore:A:B:F:N:O:P:R:T:Holes
15:89:11.1:30:16:23:60.3:3:15.9:4
20:98:12.7:38:16:28:69.8:3:15.9:4
25:108:14.3:49:17:35:79.4:3:15.9:4
32:117:15.9:59:21:43.5:88.9:5:15.9:4
40:127:17.5:65:22:50:98.4:6.5:15.9:4
50:152:19:78:25:62.5:120.6:8:19:4
65:178:22.2:90:29:75.5:139.7:8:19:4
80:190:23.8:108:30:91.5:152.4:9.5:19:4
90:216:23.8:122:32:104:177.8:9.5:19:8
100:229:23.8:135:33:117:190.5:11:19:8
125:254:23.8:164:37:145:215.9:11:22.2:8
150:279:25.4:192:40:171:241.3:12.5:22.2:8
200:343:28:246:44:222:288.4:12.5:22.2:8
250:406:30.2:305:49:227:362:12.5:25.4:12
300:483:34.8:365:56:328:431.8:12.5:25.4:12
N. Bore:A:B:F:N:O:P:R:T:Holes
15:95:14.3:38:22:23:66.7:3:15.9:4
20:117:15.9:48:25:28:82.6:3:19:4
25:124:17.5:54:27:35:88.9:3:19:4
32:133:19:64:27:43.5:98.4:5:19:4
40:156:20.6:70:30:50:114.3:6.5:22.2:4
50:165:22.2:84:33:62.5:127:8:19:8
65:190:25.4:100:38:75.5:149.2:8:22.2:8
80:210:28.6:117:43:91.5:168.3:9.5:22.2:8
90:229:30.2:133:44:104:184.2:9.5:22.2:8
100:254:31.8:146:48:117:200.2:11:22.2:8
125:279:34.9:178:51:145:235:11:22.2:8
150:318:36.8:206:52:171:269.9:12.5:22.2:12
200:381:41.3:260:62:222:330.2:12.5:25.4:12
250:444:47.6:321:95:277:387.4:12.5:28.6:16
300:521:50.8:375:102:328:450.8:12.5:31.8:16
