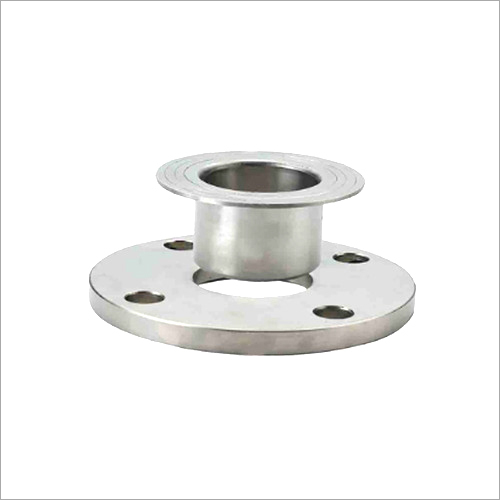

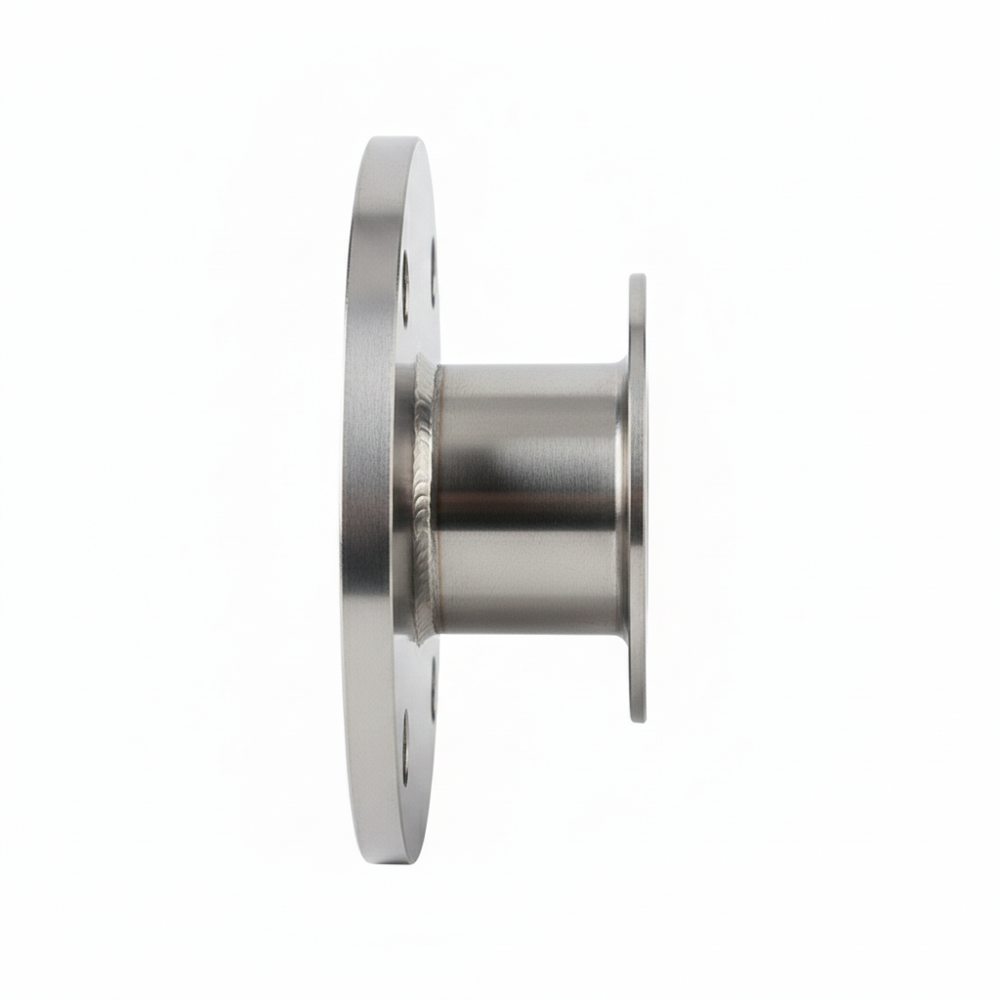

Weld Neck Lap Joint Flanges

Name: Weld Neck Lap Joint Flanges
Brand: RK GLOBAL EXPORTER
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Weld Neck Lap Joint Flanges Specification

Application
Water, Air, Gas, Oil, Steam

Feature
CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO. Crack free installation.

Product Type
Other

Material
Steel

Standard
ASME

Shape
Round

Surface
Galvanized

Size
Customized

Color
Silver

Weld Neck Lap Joint Flanges Trade Information

Minimum Order Quantity
50 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
5 Days

Main Domestic Market
All India

About Weld Neck Lap Joint Flanges

We are a renowned supplier of Weld Neck Lap Joint Flanges. They are known for their crack-free installation and have high-quality anti-rust coating provided. The provided joint flanges can be fitted with a lap joint stub end which is considered one of the standard norms of the design of these flanges. The Weld Neck Lap Joint Flanges are used for controlling pressure levels and for trouble-free installation or dismantling of the pipeline system.

Designed as per ASME standards.
CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
High quality antirust coating is provided.
Crack free installation.
Customized material and size will be provided upon request
IBR Certified will also be provided upon request.

Application:

WATER | AIR | STEAM | GAS | OIL

Specifications :

N.Bore:A:B:F:N:O:P:R:T:Holes
15:89:11.1:30:16:23:60.3:3:15.9:4
20:98:12.7:38:16:28:69.8:3:15.9:4
25:108:14.3:49:17:35:79.4:3:15.9:4
32:117:15.9:59:21:43.5:88.9:5:15.9:4
40:127:17.5:65:22:50:98.4:6.5:15.9:4
50:152:19:78:25:62.5:120.6:8:19:4
65:178:22.2:90:29:75.5:139.7:8:19:4
80:190:23.8:108:30:91.5:152.4:9.5:19:4
90:216:23.8:122:32:104:177.8:9.5:19:8
100:229:23.8:135:33:117:190.5:11:19:8
125:254:23.8:164:37:145:215.9:11:22.2:8
150:279:25.4:192:40:171:241.3:12.5:22.2:8
200:343:28:246:44:222:288.4:12.5:22.2:8
250:406:30.2:305:49:227:362:12.5:25.4:12
300:483:34.8:365:56:328:431.8:12.5:25.4:12
N. Bore:A:B:F:N:O:P:R:T:Holes
15:95:14.3:38:22:23:66.7:3:15.9:4
20:117:15.9:48:25:28:82.6:3:19:4
25:124:17.5:54:27:35:88.9:3:19:4
32:133:19:64:27:43.5:98.4:5:19:4
40:156:20.6:70:30:50:114.3:6.5:22.2:4
50:165:22.2:84:33:62.5:127:8:19:8
65:190:25.4:100:38:75.5:149.2:8:22.2:8
80:210:28.6:117:43:91.5:168.3:9.5:22.2:8
90:229:30.2:133:44:104:184.2:9.5:22.2:8
100:254:31.8:146:48:117:200.2:11:22.2:8
125:279:34.9:178:51:145:235:11:22.2:8
150:318:36.8:206:52:171:269.9:12.5:22.2:12
200:381:41.3:260:62:222:330.2:12.5:25.4:12
250:444:47.6:321:95:277:387.4:12.5:28.6:16
300:521:50.8:375:102:328:450.8:12.5:31.8:16

Engineered for Diverse Applications

These Weld Neck Lap Joint Flanges are ideal for handling water, air, gas, oil, and steam, offering exceptional performance across various industrial sectors. Their robust steel construction and galvanized finish provide corrosion resistance, ensuring longevity even in harsh environments. Custom sizing further enhances the adaptability of these flanges, making them suitable for both standard and unique operational requirements.

Precision Manufacturing and Installation Assurance

Every flange undergoes CNC machining and accurate drilling via VMC/DRO, guaranteeing a precise fit and easy, crack-free installation. This superior process ensures each product adheres to strict quality standards, supporting reliable operation and minimizing downtime due to installation issues or misalignment. The combination of technology and skilled craftsmanship results in dependable, long-lasting flange solutions.

FAQ's of Weld Neck Lap Joint Flanges:

Q: How are the Weld Neck Lap Joint Flanges manufactured to ensure accuracy?

A: Our flanges are precision-engineered using CNC machines, with additional accuracy in drilling provided by VMC/DRO technology. This meticulous process guarantees that each flange meets stringent ASME standards and provides a flawless fit during installation.

Q: What surfaces and finishes are applied to these flanges for added durability?

A: These flanges feature a galvanized surface, which protects the steel from corrosion and environmental wear. This finish ensures the product retains its silver appearance and structural integrity over extended use.

Q: When should I use these flanges in my operations?

A: These flanges are suitable for applications involving water, air, gas, oil, and steam. Their robust design and high accuracy make them a preferred choice for both industrial and utility projects requiring reliable fluid or gas transfer.

Q: Where are these flanges distributed and supplied?

A: We supply, distribute, export, and import these flanges throughout India. We also offer service support to clients, ensuring nationwide availability and technical assistance for diverse projects.

Q: What is the installation process like for these flanges?

A: Installation is straightforward owing to the CNC machining and VMC/DRO drilling process, which ensures each flange fits precisely. This facilitates a crack-free, secure connection and reduces risk of operational failures or leaks.

Q: What benefits can I expect from using your Weld Neck Lap Joint Flanges?

A: By choosing our flanges, you benefit from long-lasting durability, crack-free installation, resistance to corrosion, and versatile usage across multiple media types. Our strict adherence to ASME standards assures quality and operational reliability in your systems.
