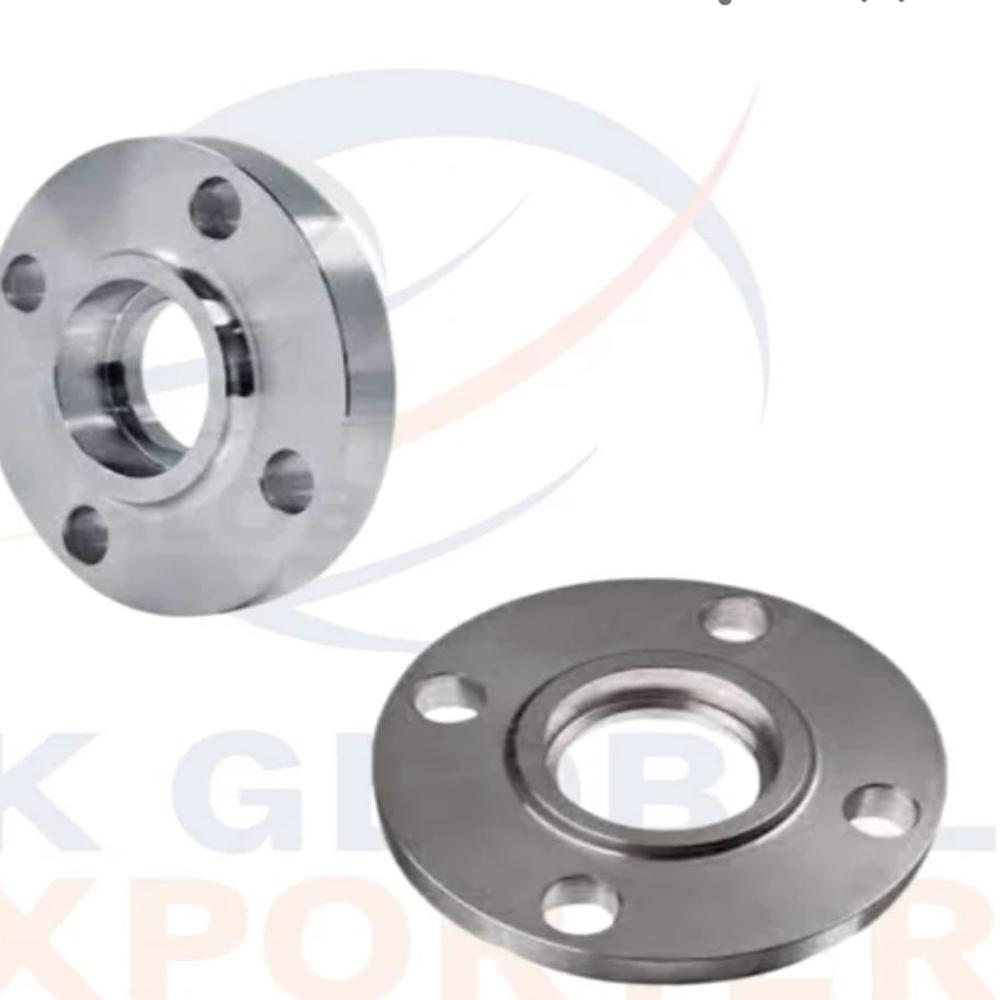

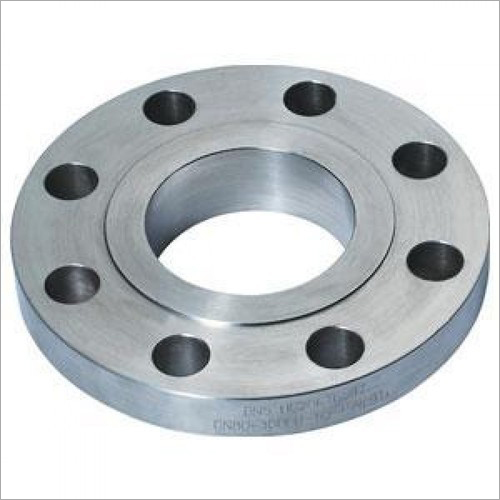

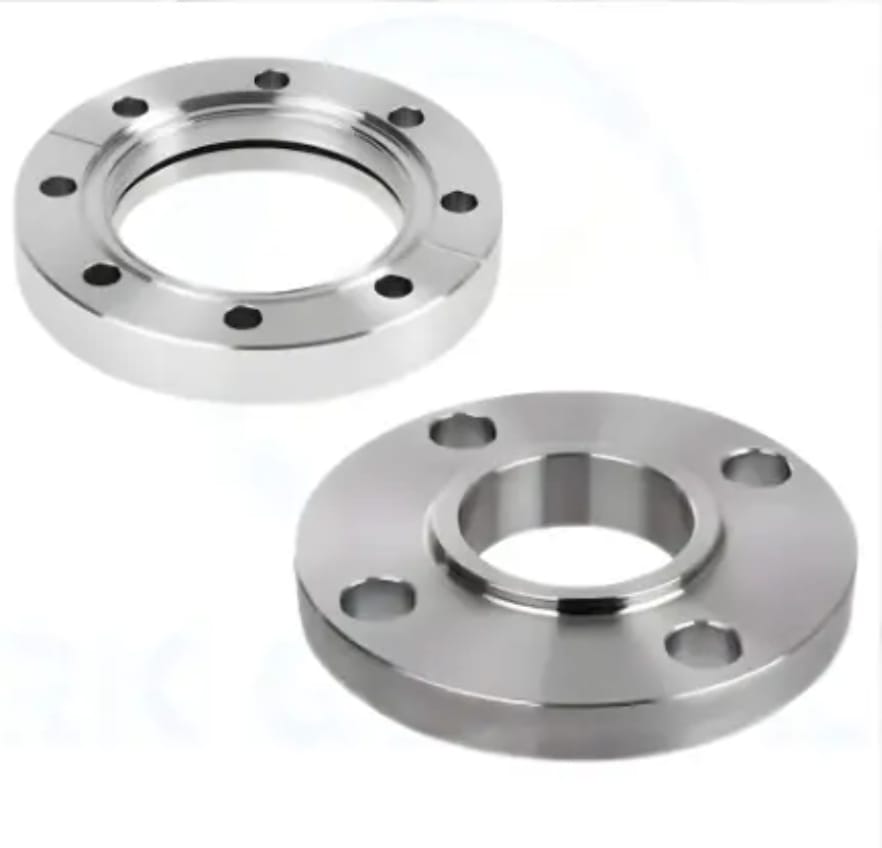

Industrial Slip On Flanges

• Designed as per ASME standards.
• CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
• High quality antirust coating is provided.
• Crack free installation.
• Customized material and size will be provided upon request
• IBR Certified will also be provided upon request.

WATER | AIR | STEAM | GAS | OIL

Specifications :

• N.Bore:A:B:C:D:E:F:G:P:T:Holes
• 15:89:11.1:1.6:35:16:30:22.4:60.3:15.9:4
• 20:98:12.7:1.6:43:16:38:27.7:69.8:15.9:4
• 25:108:14.3:1.6:51:17:49:34.5:79.4:15.9:4
• 32:117:15.9:1.6:64:21:59:43.2:88.9:15.9:4
• 40:127:17.5:1.6:73:22:65:49.5:98.4:15.9:4
• 50:152:19:1.6:92:25:78:62:120.6:19:4
• 65:178:22.2:1.6:105:29:90:74.7:139.7:19:4
• 80:190:23.8:1.6:127:30:108:90.7:152.4:19:4
• 90:216:23.8:1.6:140:32:122:103.4:177.8:19:8
• 100:229:23.8:1.6:157:33:135:116.1:190.5:19:8
• 125:254:23.8:1.6:186:37:164:143.8:215.9:22.2:8
• 150:279:25.4:1.6:216:40:192:170.7:241.3:22.2:8
• 200:343:28:1.6:270:44:246:221.5:288.4:22.2:8
• 250:406:30.2:1.6:324:49:305:276.4:362:25.4:12
• 300:483:34.8:1.6:381:56:365:327.2:431.8:25.4:12
• N.Bore:A:B:C:D:E:F:G:P:T:Holes
• 15:95:14.3:1.6:35:22:38:22.4:66.7:15.9:4
• 20:117:15.9:1.6:43:25:48:27.7:82.6:19:4
• 25:124:17.5:1.6:51:27:54:34.5:88.9:19:4
• 32:133:19:1.6:64:27:64:43.2:98.4:19:4
• 40:156:20.6:1.6:73:30:70:49.5:114.3:22.2:4
• 50:165:22.2:1.6:92:33:84:62:127:19:8
• 65:190:25.4:1.6:105:38:100:74.4:149.2:22.2:8
• 80:210:28.6:1.6:127:43:117:90.7:168.3:22.2:8
• 90:229:30.2:1.6:140:44:133:103.4:184.2:22.2:8
• 100:254:31.8:1.6:157:48:146:116.1:200.2:22.2:8
• 125:279:34.9:1.6:186:51:178:143.8:235:22.2:8
• 150:318:36.8:1.6:216:52:206:170.7:269.9:22.2:12
• 200:381:41.3:1.6:270:62:260:221.5:330.2:25.4:12
• 250:444:47.6:1.6:324:67:321:276.4:387.4:28.6:16
• 300:521:50.8:1.6:381:73:375:327.2:450.8:31.8:16
