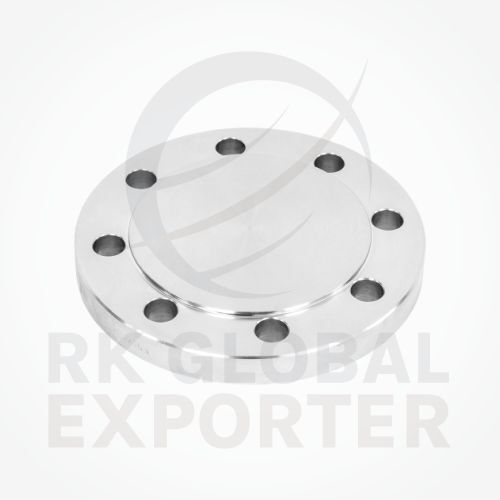

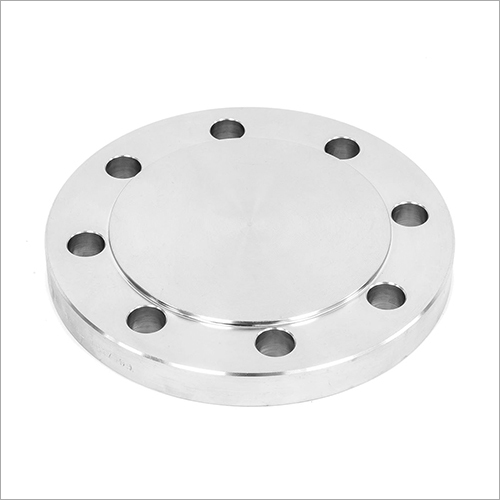

Industrial MS Blind Flanges

• Designed as per ASME standards.
• CNC Machine finishing and accuracy of drilling have been achieved by VMC/DRO
• High quality antirust coating is provided.
• Crack free installation.
• Customized material and size will be provided upon request
• IBR Certified will also be provided upon request.

WATER | AIR | STEAM | GAS | OIL

• N.Bore:A:D:B:P:T:Holes
• 15:88.9:35:11.18:60.3:15.75:4
• 20:98.55:43:12.7:69.8:15.75:4
• 25:107.95:51:14.22:79.4:15.75:4
• 32:117.34:63.5:15.75:88.9:15.75:4
• 40:127:73.2:17.53:98.4:15.75:4
• 50:152.4:92:19.05:120.6:19.05:4
• 65:177.8:104.6:22.35:139.7:19.05:4
• 80:190.5:127:23.88:152.4:19.05:4
• 90:215.9:139.7:23.88:177.8:19.05:8
• 100:228.6:157.2:23.88:190.5:19.05:8
• 125:254:185.7:23.88:215.9:22.35:8
• 150:279.4:216:25.4:241.3:22.35:8
• 200:342.9:269.8:28.45:288.4:22.35:8
• 250:406.6:324:30.23:362:25.4:12
• 300:482.6:381:34.75:431.8:25.4:12
•

• N. Bore:A:D:B:P:T:Holes
• 15:95.25:35:14.22:67.7:15.75:4
• 20:117.35:43:15.75:82.6:19.05:4
• 25:123.95:51:17.53:88.9:19.05:4
• 32:133.35:63.5:19.05:98.4:19.05:4
• 40:155.46:73.2:20.57:114.3:22.35:4
• 50:165.1:92:22.35:127:19.05:8
• 65:190.5:104.6:25.4:149.2:22.35:8
• 80:209.55:127:28.45:168.3:22.35:8
• 90:228.6:139.7:30.23:184.2:22.35:8
• 100:254:157.2:31.75:200:22.35:8
• 125:279.4:185.7:35.05:235:22.35:8
• 150:317.5:216:36.58:269.9:22.35:12
• 200:381:269.8:41.15:330.2:25.4:12
• 250:444.5:324:47.75:387.4:28.45:16
• 300:520.7:381:50.8:450.8:31.75:16
